Home » Products » Genius Series Diesel Generator » 50 KVA Diesel Generator

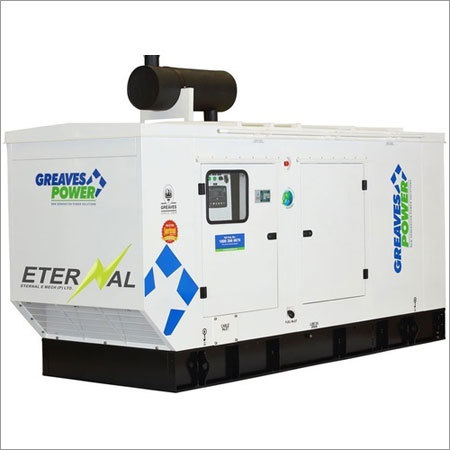

50 KVA Diesel Generator

50 KVA Diesel Generator
50 KVA Diesel Generator
Send Inquiry
Product Code : 11
Product Description
Our organization is involved in offering the 50 KVA Diesel Generator. This generator uses the reliable and robust engine for delivering the continuous power supply in the arduous environment during a power failure. Aesthetically designed, highly fuel efficient and environment-friendly nature make this generator more popular in the market. It is an excellent combination of a diesel engine, alternating current synchronous generator and control panel. Also, our provided generator works on the principle of Carnot cycle and electromagnetic induction. In addition, this 50 KVA Diesel Generator can be easily operated.

Features:
  • Converts mechanical energy into electrical energy through induction
  • Low oil and fuel consumption
  • High working efficiency











Genset
Rating
No. of
Phases
Rated
Current @
0.8 PF
Engine
Model
BHP RPM Electric
Starting
Integral
Fuel Tank
Capacity
DG Set
Dimensions (mm)
Dry Weight
kVA / kW
(Amps)



Ltrs L W H Kg
2.5/2.5 1/3 10.9/3.5 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 280
3.5/3.5 1/3 15.2/4.9 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 280
5/4 1/3 21.7/6.9 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 300
7.5/6 1/3 32.6/10.4 G600W 11 3000 12V 35 1600 800 1050 400
10/10 1/3 43.4/13.9 G-12-II 18 1500 12V 50 1800 950 1335 600
15/12 1/3 65.2/20.8 G-15-II 21.6 1500 12V 50 1800 950 1335 740
20/16 1/3 86.9/27.8 G-20-II 25.2 1500 12V 75 1990 950 1335 860
25/20 1/3 108.6/34.7 G-30-II 42 1500 12V 75 1990 950 1335 1180
30/24* 1/3 130/41.7 G-30-II 42 1500 12V 75 1990 950 1335 1180
40/32 3 55.6 G-40-II 58 1500 12V 100 2350 950 1380 1350
45/36 3 62.6 G-40-II 58 1500 12V 100 2350 950 1380 1400
45/45 3 62.6 3G11TAG25 80.1 1500 12V 100 2500 1150 1535 1495
50/50 3 69.6 3G11TAG25 80.1 1500 12V 150 2500 1150 1535 1640
62.5/50 3 87 3G11TAG25 80.1 1500 12V 150 2500 1150 1535 1640
75/60 3 104.3 3G11TAG26 101.2 1500 12V 150 2800 1150 1540 1670
82.5/66 3 114.3 3G11TAG26 101.2 1500 12V 150 2800 1150 1540 1670
100/80 3 139.1 4G11TAG25 126.5 1500 12V 250 3000 1350 1884 1860
125/100 3 173.9 4G11TAG26 155 1500 12V 250 3000 1350 1884 2000
160/160 3 222.6 6G11TAG29 243.1 1500 12V 360 3800 1350 1900 3025
180/144 3 250.4 6G11TAG29 243.1 1500 12V 360 4000 1600 1900 3400
200/160 3 278.2 6G11TAG29 243.1 1500 12V 360 4000 1600 1900 3500
250/200 3 347.8 D3V6TAG21 309 1500 12V 440 4500 1800 2200 4050
320/320 3 445.2 12V14TAG23 604 1500 12V 990 5600 2000 2300 5500
400/400 3 556.5 12V14TAG23 604 1500 12V 990 5600 2000 2300 6200
500/400 3 695.6 12V14TAG23 604 1500 12V 990 5600 2000 2300 6700

Eternal E Mech Private Limited
